How Does Regasification of LNG Work?

By
Magnus Eikens
Jan 26, 2021
6
minutes read time

Liquefied natural gas must be regasified to be used as fuel, power generation, for heating, cooking etc.. This process can be done in different ways, which is explained in the article.

What is regasification of LNG?

For transport over large distances or when pipelines for natural gas are not available, the gas can be transported as liquified natural gas (LNG). Natural gas is commonly transported and stored in liquid state because its volume is decreased about 600 times compared to at gaseous state. By cooling the gas down to approximately -162°C, the gas condensates and becomes liquid. Regasification is the process of converting the gas back to gaseous state by heating the liquified gas.

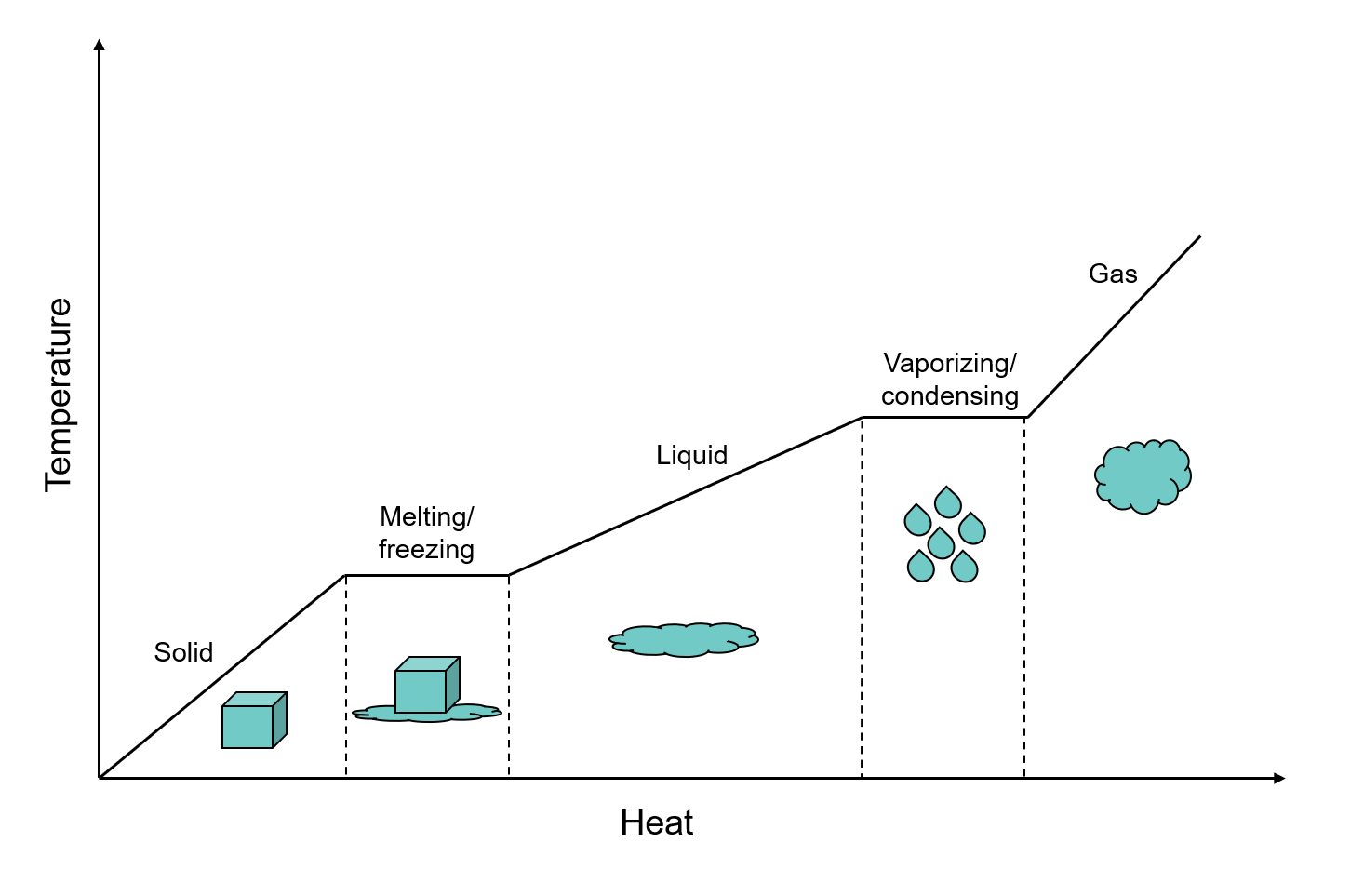

Generic changes of state diagram
Regasification is the process of converting the gas back to gaseous state by heating the liquified gas

Where in the LNG value chain does regasification take place?

To use the LNG as fuel, power generation, for heating, cooking etc., the LNG must be converted back to gaseous state. Typically, this process takes place at large import terminals where LNG carriers discharge their LNG cargo. At these terminals, the gas is stored at liquid state in tanks, and regasified before it is transferred as natural gas to the end user through a pipeline gas network. Alternatively, the LNG can be transported further by truck, rail or smaller ships and regasified closer to the consumers.

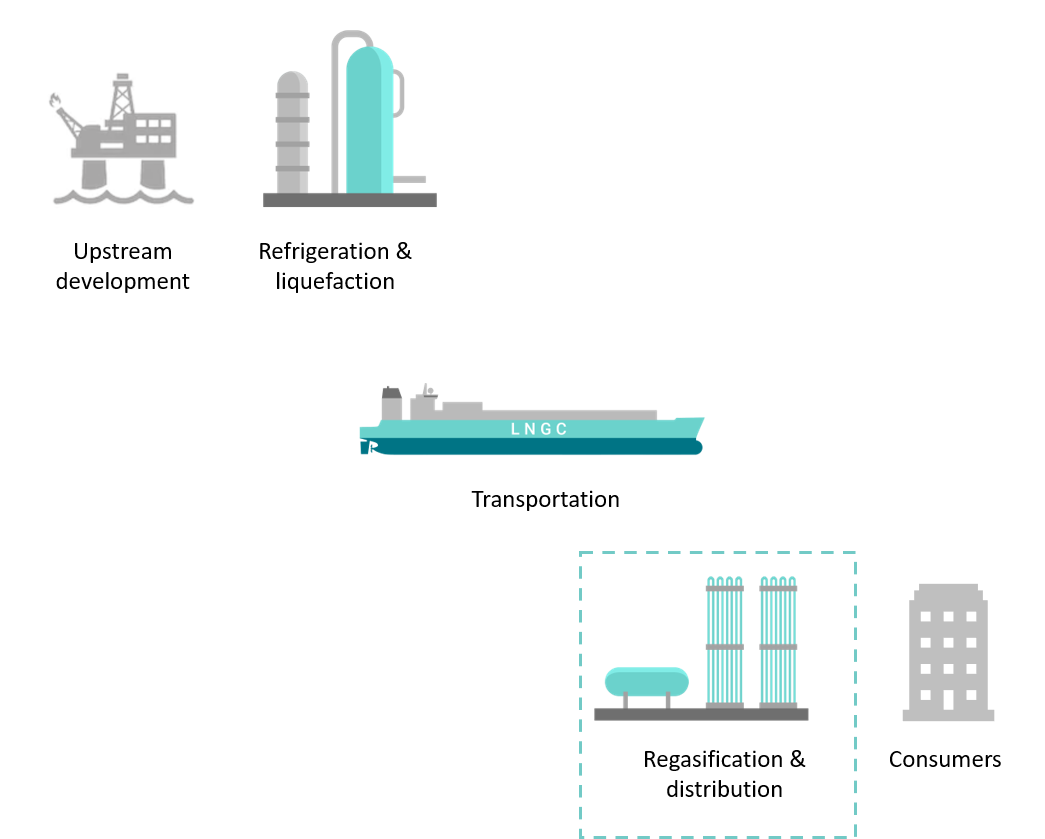

Regasification in the LNG value chain
Regasification typically takes place at large import terminals where LNG carriers discharge their LNG cargo

Regasification process

A regasification plant can use a heat exchanger with sea water as heat medium to increase the heat of the natural gas to change it from liquid to gaseous state. Air vaporizers can also be used where several large fans that push air through heat exchangers to vaporize the LNG. In periods of high demand, regasification might also be accelerated using underwater burners running on natural gas.

Regasification infrastructure

Traditionally, gas would be transferred from the LNG carrier in liquid form to the LNG terminal where the regasification would take place using onshore regasification technology, but floating solutions are becoming increasingly common today. In the following, some of these terminal technologies will be described.

Onshore regasification

At an import terminal with onshore regasification, LNG is received from an LNG carrier and is stored in large onshore tanks and regasified at the import terminal. Alternatively, a floating storage unit (FSU) can be used to store the LNG before regasification onshore. Another solution is to connect an FSU to a regas module placed on the jetty next to the berth. At onshore regasification terminals, air vaporizers and submerged combustion vaporizers have been the most common technologies.

Onshore regasification terminals are sometimes placed in the proximity of power plants or industrial plants so that they can exchange heat to vaporize the LNG with cooling energy for the plants to increase the total efficiency.

Floating storage and regasification

A floating storage and regasification unit (FSRU) is a floating terminal with storage and regasification facilities. These units can either be specifically designed for the purpose of storing and regasifying LNG or be modified LNG carriers.

Instead of using one single floating installation, the FSRU, for both storing and regasifying LNG, it is possible to separate these actions and perform them in two separate units. The two components are the floating storage unit (FSU) and the floating regasification unit (FRU), which in total perform the same task as the FSRU. Pipelines or hoses which transfers LNG and excess BOG make out the interface between the two units. This solution can be cheaper than utilizing an FSRU and make a good fit for areas with calm waters.

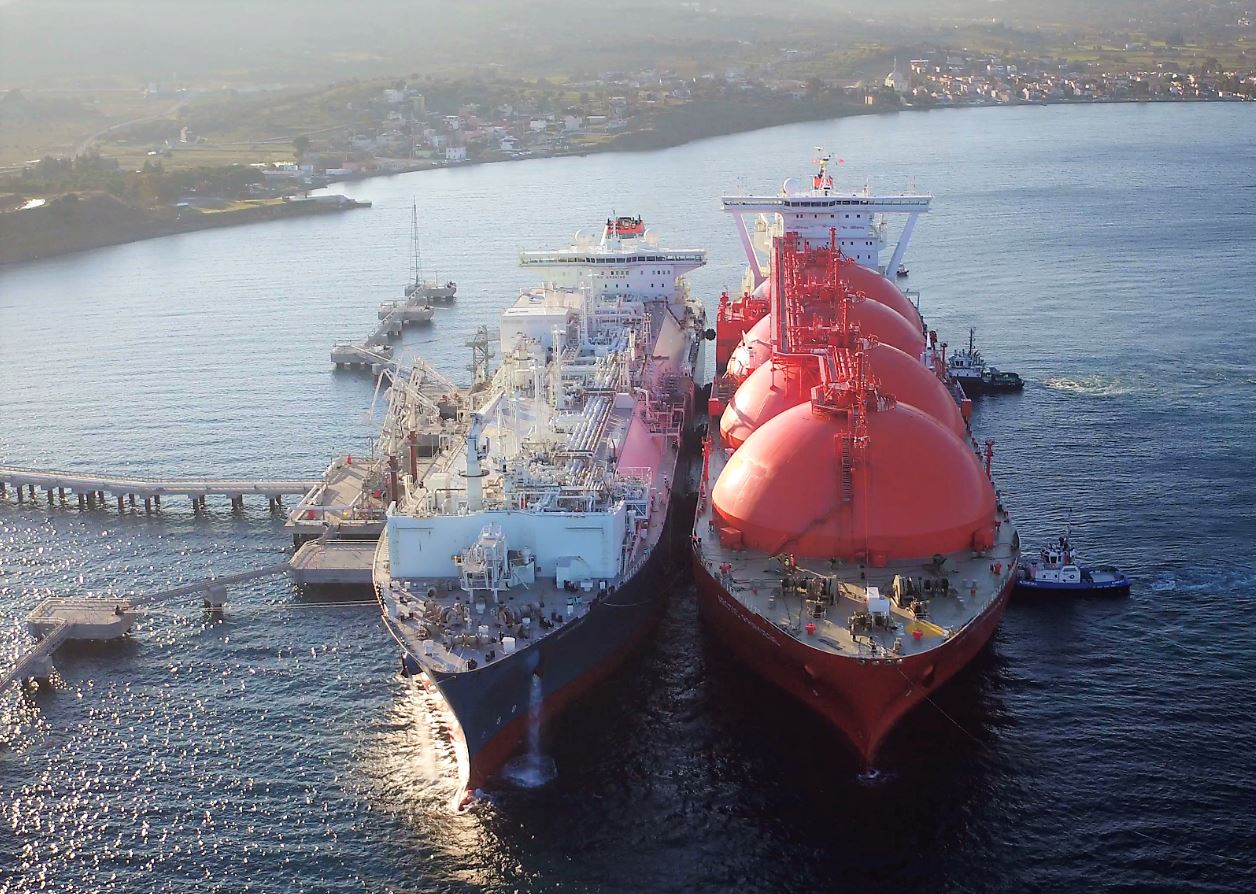

FSRU and LNG carrier
An FSRUs is used to store and regasify LNG that is discharged from LNG carriers

A shift towards floating terminals

Building an onshore regasification terminal is a large, long-term investment which requires certainty of continuous supply of LNG. An FSRU on the other hand can be time chartered, moving capital expense to operational expense. Conversion of old LNG carriers to FSRUs also allow for short lead times. However, restrictions on FSRUs include capacity limitations and lifespan, where it in many cases will be surpassed by an onshore regasification terminal.

Due to its relatively reasonable price and short time from FID to utilization, the FSRU is becoming increasingly popular, and is predicted to play an important role in conjunction with future LNG technology.

Last updated:
Jan 26, 2021

This article is co-written by Magnus Eikens and Mats Møller.
